APC Smart-UPS SRT 2200VA RM 230V Network Card
High density, double-conversion on-line power protection with scalable runtime
Includes: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Network management card, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, USB cable, Warranty card
Output power capacity
1.98kWatts / 2.2kVA
Rack Height
2U
Output Connections
(8) IEC 60320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
(2) IEC 60320 C19 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P
Cord Length
2.4meters
Output Voltage Distortion
Less than 2 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double conversion online
Waveform type
Sine wave
Bypass
Built-in bypass

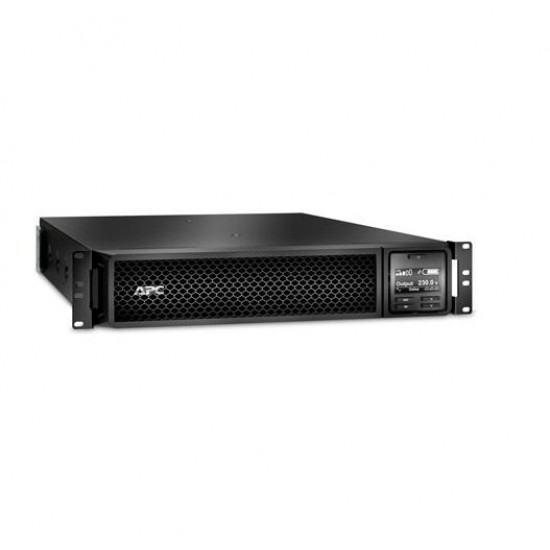

UPS APC Smart-UPS SRT online dubla-conversie 2200VA / 1980W 8 conectori C13 2 conectori C19 extended runtime, baterie RBC31 rackabil, placa retea inclusa,3 ani garantie echipament si 2 ani garantie baterie
- Disponibilitate: In Stoc
- Model: SRT2200RMXLI-NC
- Greutate: 33.00kg
- Dimensiuni: 81.50cm x 60.00cm x 25.00cm
13.915,03 Lei
17.331,41 Lei
Fără TVA: 11.500,03 Lei
Garanție: 36 luni
| Caracteristici | |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 12 AC outlet(s) |
| Audible alarm(s) | Yes |
| Battery capacity | 367 VAh |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Battery technology | Sealed Lead Acid (VRLA) |
| Cable length | 2.44 m |
| Capacitate putere UPS | 1980W |
| Capacitate Rack | 2U |
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE |
| Crest factor | 3:1 |
| Depth | 58.4 mm |
| Display type | LCD |
| Ecran LCD: | Da |
| Emergency Power Off (EPO) | Yes |
| Form factor | Rackmount |
| Form Factor: | Rackmount |
| Harmonized System (HS) code | 85078000 |
| Height | 8.5 mm |
| Input frequency | 40 - 70 Hz |
| Input operation voltage (max) | 275 V |
| Input operation voltage (min) | 160 V |
| International Protection (IP) code | IP20 |
| LED indicators | Yes |
| Noise level | 55 dB |
| Non-operating altitude | 0 - 15000 m |
| Number of batteries supported | 1 |
| Number of output IEC jumpers | 2 |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 1980 W |
| Output power capacity | 2.2 kVA |
| Output voltage | 230 V |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Package depth | 810 mm |
| Package height | 246 mm |
| Package weight | 3.4 kg |
| Package width | 599 mm |
| Port USB | Da |
| Rack capacity | 2U |
| Rackable | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -20 - 50 °C |
| Surge energy rating | 340 J |
| Sustainability certificates | ENERGY STAR, Green Premium |
| Tip UPS: | Online |
| Total carbon footprint (kg of CO2e) | 3656.79 |
| UPS topology | Double-conversion (Online) |
| UPS-Management | Yes |
| USB Port | Yes |
| Waveform | Sine |
| Weight | 2.5 kg |
| Width | 432 mm |
