-32 %

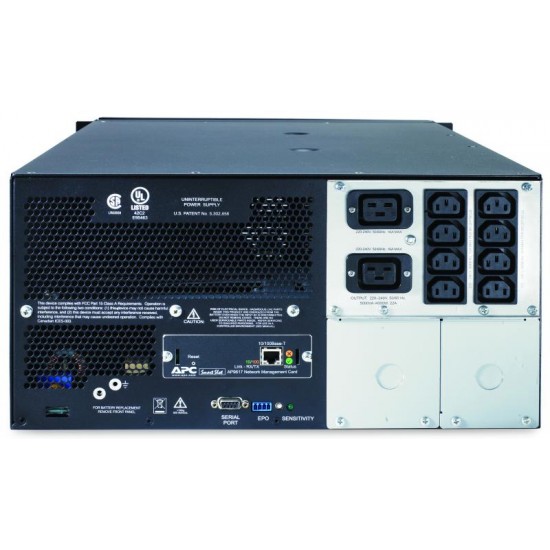

APC Smart-UPS 5000VA 230V Rackmount/Tower
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack mounting support rails, Smart UPS signalling RS-232 cable, User manual, Web/SNMP management card
Output power capacity
4.0kWatts / 5.0kVA
Rack Height
5U
Output Connections
(4) IEC Jumpers (Battery Backup)
(2) IEC 320 C19 (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
Hard wire 3-wire
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
96.0 %
Output Voltage Distortion
Less than 5 % at full load
Output Frequency (sync to mains)
47 - 53 Hz For 50 Hz nominal Sync to mains
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Line interactive
Waveform type
Sine wave
Transfer Time
2 ms typical : 4 ms maximum
UPS APC Smart-UPS SUA line-interactive 5000VA / 4000W 8 conectori C13 2conectori C19 rackabil 5U/tower, baterie RBC55, optional exti nderegarantie cu 1/3 ani (WBEXTWAR1YR-SP-05/WBEXTWAR3YR-SP-05)
- Disponibilitate: In Stoc
- Model: SUA5000RMI5U
- Greutate: 106.82kg
- Dimensiuni: 99.00cm x 60.00cm x 50.00cm
20.187,57 Lei
29.633,21 Lei
Fără TVA: 16.683,94 Lei
Garanție: 24 luni
| Caracteristici | |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
| Automatic battery test | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Battery capacity | 1632 VAh |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Battery technology | Sealed Lead Acid (VRLA) |
| Cables included | RS-232 |
| Capacitate putere UPS | 4000W |
| Capacitate Rack | 5U |
| Certification | C-tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE, REACH, PEP, EOLI |
| Cold start | Yes |
| Depth | 660 mm |
| Ecran LCD: | Da |
| Efficiency | 96% |
| Ethernet LAN (RJ-45) ports | 0 |
| Form factor | Rackmount/Tower |
| Form Factor: | Rackmount/Tower |
| Harmonized System (HS) code | 85078000 |
| Height | 222 mm |
| Hold time (max) | 4 ms |
| Hold time (min) | 2 ms |
| Hot-swap battery | Yes |
| Input frequency | 50 - 60 Hz |
| Input operation voltage (max) | 302 V |
| Input operation voltage (min) | 151 V |
| LED indicators | Battery replacement |
| Noise level | 53 dB |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Non-operating altitude | 0 - 15000 m |
| Number of output IEC jumpers | 4 |
| Number of output phases | 1 |
| Operating altitude | 0 - 9000 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Output frequency regulation | 47 - 53 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 4000 W |
| Output power capacity | 5 kVA |
| Package depth | 7.62 mm |
| Package height | 635 mm |
| Package weight | 106.8 kg |
| Package width | 610 mm |
| Packaging content | Web/SNMP Management Card |
| Port USB | Nu |
| Power plug | Hard Wire 3-wire |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet | 4 pc(s) |
| Quick installation guide | Yes |
| Rack capacity | 5U |
| Rack mount kit | Yes |
| Software CD | Yes |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 45 °C |
| Surge energy rating | 480 J |
| Surge protection | Yes |
| Tip UPS: | Line Interactive |
| Total carbon footprint (kg of CO2e) | 4487.43 |
| Typical backup time at full load | 9.4 min |
| Typical backup time at half load | 26.7 min |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Weight | 97.7 kg |
| Width | 483 mm |
