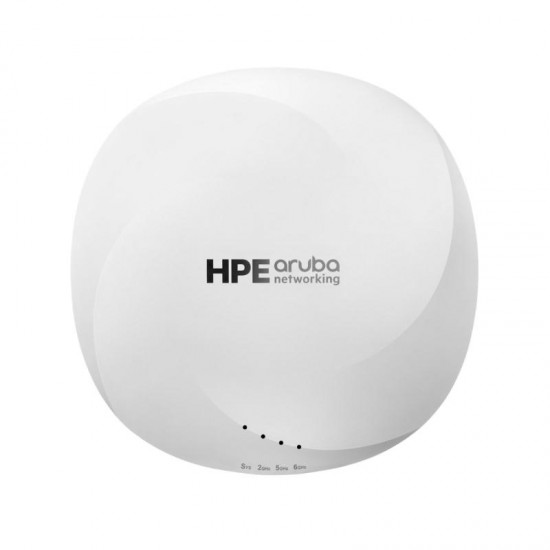

HPE Aruba Networking AP-615-RW Dual Radio Tri Band 2x2 Wi-Fi 6E Int Antennas Campus AP

Lifecycle

• Obsolete Date 31-12-2099

Specifications

• Regulatory FCC/ISED CE Marked Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 For more country-specific regulatory information and approvals, contact your HPE representative.
• Weight 0.72 kg
• Weight 1.59 lb
• Certifications UL2043 plenum rating Wi‑Fi Alliance®: Wi-Fi CERTIFIED® a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi agile multiband Wi-Fi CERTIFIED Location™ Bluetooth SIG Ethernet Alliance (PoE, PD device, class 4)
• MACsec support No
• Radio configuration options 2.4 GHz and 5 GHz or 2.4 GHz and 6 GHz or 5 GHz and 6 GHz
• Max bandwidths and peak data rate per band 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), 3.6 Gbps maximum peak data rate
• Ultra tri-band (UTB) filtering No
• Wi-Fi generation Wi-Fi 6E (802.11ax with 6 GHz)
• Wi-Fi radios 2x2:2
• Wired network interface 1 x 2.5 Gbps
• AP management On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
• AP operating system support HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Wireless Operating System 10
• Cellular support USB LTE modem (sold separately)
• Deployment Indoor
• Integrated sensor No
• IoT support Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio, USB 2.0 type A
• Location services 802.11 FTM support; GNSS receiver
• Product dimensions (imperial) 2 x 7.9 x 7.2 in
• Wi-Fi antenna AP-615: Integrated down-tilt omni-directional antennas for 2x2 MIMO. Built-in antennas are optimized for horizontal ceiling-mounted orientation of the access point. The down-tilt angle gain is roughly 30° to 40°.
• Warranty Limited lifetime warranty. See the warranty duration guide.
• Ports E0: Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot
• Product dimensions (metric) 5.1 x 20.1 x 18.3 x cm

Quickspecs

• QuickSpecs
• QuickSpecs (HTML)
• QuickSpecs
• QuickSpecs (PDF)

Overview

HPE Aruba Networking 610 Series Campus Access Points are designed to take advantage of the 6 GHz band and achieve up to a combined maximum 3.6 Gbps data rate for higher throughput and faster speeds indoors. Adding support for the 6 GHz band increases capacity by up to 1200 MHz with more 80/160 MHz channels to support growing demands due to bandwidth-hungry video, growth in client and Internet of Things (IoT) devices, and expanded use of the cloud. The compact and cost-effective 610 series features dual radios that can be tuned to any two of the three spectrum bands for Wi-Fi: 2.4 GHz, 5 GHz, and 6 GHz. Full tri-band coverage is available in a multi-access point deployment. Built-in GPS receivers and fine time measurements enable the 610 series to automatically locate themselves and serve as reference points for accurate indoor location measurements. The 610 series includes a limited lifetime warranty.

What's new

• It is offered as optional eco-friendly 10-pack
• Built-in GPS receivers and fine time measurement allow APs to automatically locate themselves and serve as reference points for accurate indoor location measurements
• Low power consumption enables unrestricted operation from an 802.3af (Class 3) PoE source [1]
• Software programable, dual-radio operating modes deliver cost-effective coverage across any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz with full tri-band coverage in multi-AP deployments
• The 610 series provides up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and augmented reality/virtual reality applications
• Unlock the 6 GHz band to deliver up to 1200 MHz additional capacity and up to 3.6 Gbps combined peak datarate

Features

Wi-Fi 6E extends support for Wi-Fi 6 features such as OFDMA, MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency.

HPE Aruba Networking 610 Series Campus Access Points include built-in GPS receivers and fine time measurement to automatically and accurately locate themselves.

HPE Aruba Networking 610 Series Campus Access Points are based on the 802.11ax standard so multi-user efficiency and security features are applied to Wi-Fi 6E.

It offers low power (802.3af Class 3) and compact form factor for ease of deployment.

Software-programable radios can be configured to cover any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz.

Client and RF optimization to match clients with the best available access point and reduce coverage gaps.

Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise.

Unique AP capabilities include ClientMatch, advanced cellular coexistence (ACC), and intelligent power monitoring (IPM) to customize user experience and energy use.

HPE Aruba Networking 610 Series Campus Access Points equip enterprises with 6 GHz coverage providing up to 1200 MHz additional capacity at an attractive price point.

With up to seven 160 MHz channels, the APs increase performance for low-latency, bandwidth-hungry applications.

The 610 series is designed for indoor environments

HPE Aruba Networking 610 Series Campus Access Points with dual radios deliver up to a maximum combined 3.6 Gbps data rate for higher throughput and faster speeds.

The access point supports Open Locate, an emerging standard that allows APs to share their location over the air and through cloud-based APIs.

Media

After nearly 20 years of being limited to the 2.4 and 5 GHz bands, Wi-Fi 6E introduces the 6 GHz band which gives us access to much more bandwidth to support a wide range of applications and devices.
