-23 %

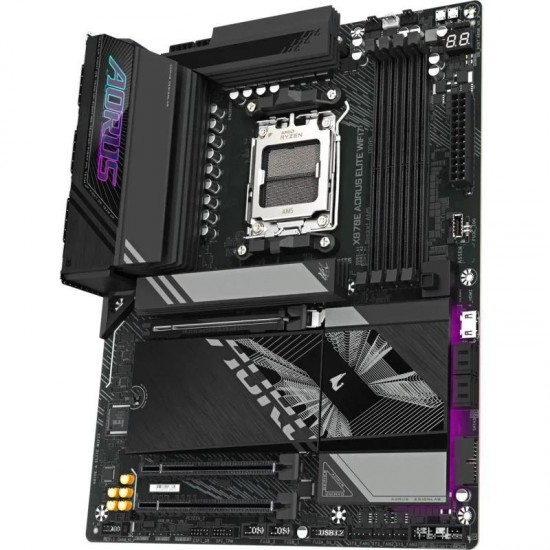

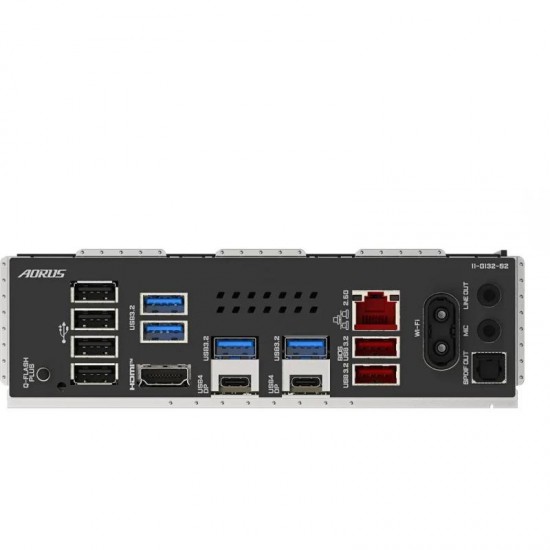

Placa de bază Gigabyte X870E AORUS ELITE WIFI7 AM5
- Disponibilitate: In Stoc
- Model: X870E A ELITE WIFI7
- Greutate: 2.34kg
- Dimensiuni: 35.00cm x 27.00cm x 8.00cm
1.557,84 Lei
2.022,67 Lei
Fără TVA: 1.287,47 Lei
Garanție: 36 luni
| Caracteristici | |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 25110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 22110 |
| ACPI version | 5.0 |
| Antenna included | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio Chip | Realtek ALC1220 |
| Audio output channels | 7.1 channels |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Bluetooth | Da |
| Bluetooth version | 5.4 |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Canale audio | 7.1 |
| Chipset audio integrat | Realtek |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Component for | PC |
| Country of origin | China |
| CPU fan connector | Yes |
| Depth | 24.4 mm |
| Desktop Management Interface (DMI) version | 2.7 |
| DirectX version | 12.0 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 0 |
| ECC сompatibility | Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Format | ATX |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Gaming | Nu |
| HDMI | Da |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Height | 35 mm |
| LAN controller | Realtek RTL8125 |
| Lithium weight per battery | 0.07 g |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Maximum internal memory supported by processor | 256 GB |
| MB-Format | ATX |
| MB-Socket | AM5 |
| Memorie maxima | 256 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Model Chipset | X870E |
| Motherboard chipset | AMD X870E |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Numar sloturi memorie | 4 |
| Number of battery cells | 1 |
| Number of chassis fan connectors | 4 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 4 |
| Number of memory slots | 4 |
| Number of RGB LED pin headers | 4 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 8 |
| Number of water pump connectors | 2 |
| On-board graphics card | No |
| Onboard-CPU | No |
| Package depth | 294 mm |
| Package height | 80 mm |
| Package weight | 2.74 kg |
| Package width | 34.5 mm |
| Parallel processing technology support | Not supported |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| PCI | 0 |
| PCI Express x1 (Gen 3.x) slots | 0 |
| PCI Express x1 (Gen 4.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 0 |
| PCI Express x4 (Gen 4.x) slots | 0 |
| PCI Express x4 slots | 2 |
| PCI Express x8 (Gen 3.x) slots | 0 |
| PCI Express x8 (Gen 4.x) slots | 0 |
| PCI Express x8 (Gen 5.x) slots | 0 |
| PCI-Ex1 | 0 |
| PCI-Ex16 | 3 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| PS/2 ports quantity | 0 |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| RAM-Slots | 4 |
| RGB LED pin header | Yes |
| RJ-45 LAN | 1 |
| S/PDIF out port | Yes |
| Screws included | Yes |
| Serial-or-Paralel | No/No |
| Sloturi M.2 | 4 |
| Soclu Procesor | Socket AM5 |
| Supported memory clock speed (max) | 8200 MHz |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | Socket AM5 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| System Management BIOS (SMBIOS) version | 2.7 |
| Thunderbolt | Nu |
| Tip memorie | DDR5 |
| Tip slot interfata grafica | N/A |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 connectors | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| USB Type C | Da |
| USB3 | 4-8 |
| USB4 Gen 2x2 ports quantity | 2 |
| USB4 Gen 3x2 ports quantity | 0 |
| Video-Connection | HDMI |
| Weight | 2.4 kg |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Width | 30.5 mm |
| WiFi-AP antenna jack | 2 |
| Windows operating systems supported | Windows 11 x64 |
| Wireless | Da |
| WLAN controller model | MediaTek MT7925 |
