-38 %
| Recomandat pentru Gaming | Da |
| Format | ATX |
| Soclu procesor | 1700 |
| Producator chipset | Intel |
| Model chipset | Z790 |
| Procesoare suportate | Intel 12th/13th Generation Core/Pentium Gold/Celeron |
| Interfata grafica | PCI Express x16 5.0 |
| Placa video integrata | Necesita procesor cu tehnologia Intel HD Graphics |
| Placa audio integrata | 7.1 Audio with Realtek |
| Chipset audio | Realtek |
| Placa retea integrata | 10/100/1000/2500 Mbps |
| Chipset retea | Intel 2.5GbE |
| Numar SATA-III | 6 |
| M.2 | 4 |
| Memorii Suportate | |
| Tip memorie | DDR5 |
| Memorie maxima | 128 GB |
| Numar sloturi | 4 |
| Tehnologie | Dual channel |
| Frecvente suportate | 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 |
| Sloturi | |
| PCI Express 5.0 x16 | 1 |
| PCI Express 4.0 x16 | 2 (x4 / x4) |

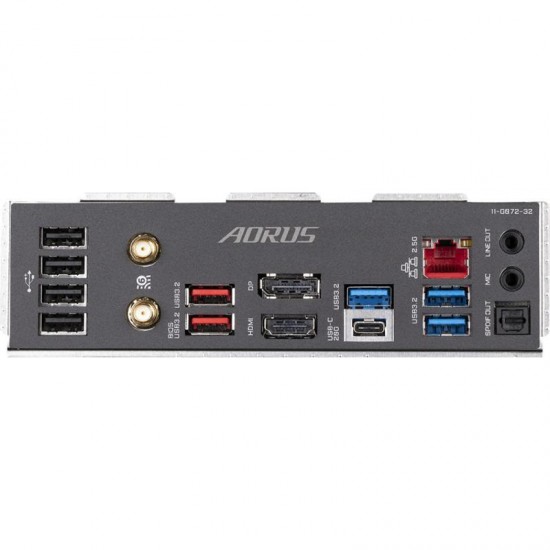

| Conectori Back Panel | |
| Optical S/PDIF out | 1 |
| HDMI | 1 |
| Display Port | 1 |
| USB 2.0 | 4 |
| USB 3.2 Gen1 tip A | 3 |
| USB 3.2 Gen2 tip A | 2 |
| USB 3.2 Gen2 tip C | 1 |
| RJ-45 LAN | 1 |
| Suport audio | 7.1 |
| Bluetooth | Bluetooth 5.3 |
| Wireless | Wi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band |

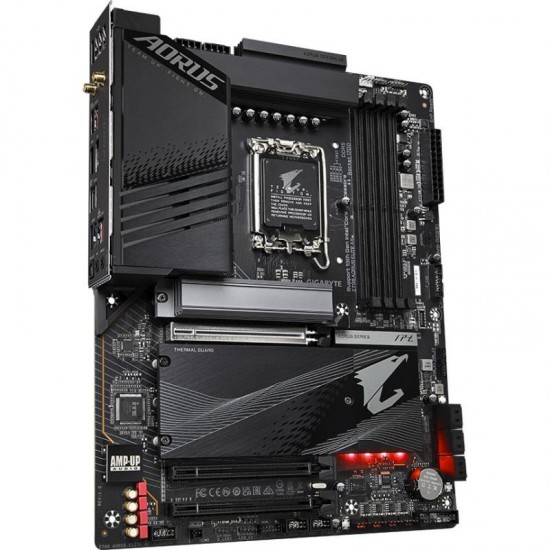

Placa de bază Gigabyte Z790 AORUS ELITE AX LGA1700
- Disponibilitate: In Stoc
- Model: Z790 AORUS ELITEAX
- Greutate: 2.00kg
- Dimensiuni: 33.50cm x 27.00cm x 8.00cm
1.202,99 Lei
1.929,43 Lei
Fără TVA: 994,20 Lei
Garanție: 36 luni
| Caracteristici | |
| 12V power connector | Yes |
| ACPI version | 5.0 |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 channels |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Bluetooth | Da |
| Bluetooth version | 5.3 |
| Bundled software | Norton Internet Security |
| Cables included | SATA |
| Canale audio | 7.1 |
| Chipset audio integrat | Realtek |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Component for | PC |
| Country of origin | China |
| CPU fan connector | Yes |
| Depth | 24.4 mm |
| Desktop Management Interface (DMI) version | 2.7 |
| DirectX version | 12.0 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| DVI-D ports quantity | 0 |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Format | ATX |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Gaming | Nu |
| HDCP | Yes |
| HDMI | Da |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Headphone outputs | 2 |
| Height | 35 mm |
| Lithium weight per battery | 0.07 g |
| Maximum internal memory | 192 GB |
| Maximum internal memory supported by processor | 192 GB |
| Maximum resolution | 4096 x 2304 pixels |
| MB-Format | ATX |
| MB-Socket | 1700 |
| Memorie maxima | 192 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Model Chipset | Z790 |
| Motherboard chipset | Intel Z790 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| mSATA ports quantity | 0 |
| Numar sloturi memorie | 4 |
| Number of battery cells | 1 |
| Number of HDDs supported | 6 |
| Number of M.2 (M) slots | 4 |
| Number of memory slots | 4 |
| Number of SATA connectors | 0 |
| Number of SATA II connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of storage drives supported | 10 |
| On-board graphics card | No |
| Onboard-CPU | No |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.32 kg |
| Package width | 335 mm |
| Parallel processing technology support | Crossfire |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| PCI | 0 |
| PCI Express x16 slots | 3 |
| PCI-Ex1 | 0 |
| PCI-Ex16 | 3 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| RAM-Slots | 4 |
| RGB LED pin header | Yes |
| RJ-45 LAN | 1 |
| S/PDIF out port | Yes |
| Serial-or-Paralel | No/No |
| Sloturi M.2 | 4 |
| Soclu Procesor | Socket 1700 |
| Supported memory clock speed (max) | 7600 MHz |
| Supported memory clock speeds | 7600,7400,7200,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD & SSD |
| System Management BIOS (SMBIOS) version | 2.7 |
| Thunderbolt | Nu |
| Thunderbolt headers | 2 |
| Tip memorie | DDR5 |
| Tip slot interfata grafica | PCIe 5.0 x16 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Total number of SATA connectors | 6 |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| USB Type C | Da |
| USB3 | 4-8 |
| VGA (D-Sub) ports quantity | 0 |
| Video-Connection | HDMI/DP |
| Wi-Fi | Yes |
| Width | 30.5 mm |
| WiFi-AP antenna jack | 2 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Wireless | Da |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
