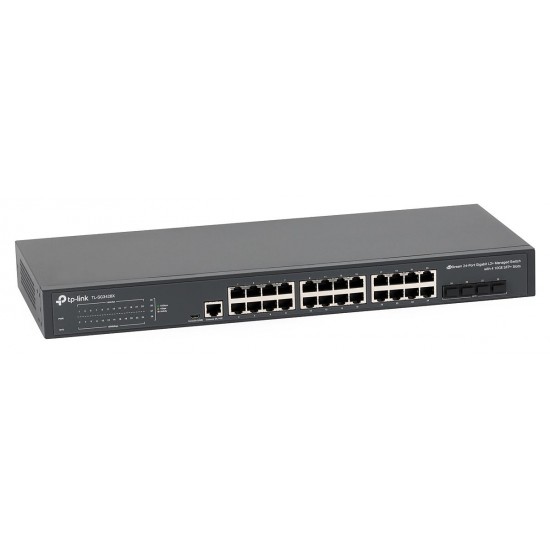

"JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, O

Nou -35 %
"JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6 "
"JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, O
  • Disponibilitate: In Stoc
  • Model: TL-SG3428X
  • Greutate: 2.75kg
  • Dimensiuni: 53.00cm x 25.00cm x 8.00cm
TP-LINK TP-LINK
Bazată pe 0 note. - Spune-ţi opinia
1.453,19 Lei
2.244,51 Lei
Fără TVA: 1.200,98 Lei
Garanție: 24 luni
Adaugă în Coş
Cumpara acum Pune o intrebare
Adaugă in Wishlist Compară produsul
Cere informatii









Caracteristici
10G supportYes
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Access Control List (ACL)Yes
Active link detectionYes
ARP inspectionYes
AuthenticationGuest VLAN, MAC-based authentication, Port-based authentication
Authentication typeAAA, RADIUS, TACACS+
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
BPDU filtering/protectionYes
Broadcast storm controlYes
Cables includedLAN (RJ-45)
Cloud-managedYes
Configuring Location Settings (CLI)Yes
Console portRJ-45/Micro-USB
Depth180 mm
DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Ethernet LAN data rates10,100,1000 Mbit/s
FanlessYes
Flow control supportYes
Form factor1U
Forwarding rate95.23 Mpps
GARP VLAN Registration Protocol (GVRP)Yes
Gigabit Ethernet (copper) ports quantity24
Harmonized System (HS) code85176990
Head-of-line (HOL) blockingYes
Heat dissipation80.353 BTU/h
Height44 mm
IGMP snoopingYes
Installed SFP modules quantity0
Installed SFP+ modules quantity0
IP-MAC-Port bindingYes
IPv4 & IPv6 featuresIPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
IPv4 routes48
IPv6 routes48
Jumbo frames9000
Jumbo frames supportYes
LAN port typeGigabit
LED indicatorsYes
Link aggregationYes
Loop protectionYes
MAC address table16000 entries
ManagementDa
Management protocolsSNMPv1/v2c/v3, SNTP
MIB supportYes
Montare in rackDa
Multicast Listener Discovery (MLD) snoopingY
Multicast supportYes
Networking standardsIEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Number of fans0 fan(s)
Number of static routes48
Number of VLANs4000
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 45 °C
Package depth250 mm
Package height80 mm
Package weight2.69 kg
Package width528 mm
Packet buffer memory12 MB
PoENu
Policy-based routingYes
Port mirroringYes
Porturi RJ 4524-28
Porturi SFP3-4
Power connectorAC-in jack
Power consumption (max)23.6 W
Power over Ethernet (PoE)No
Power sourceAC
Power supply includedYes
Product colourBlack
Quality of Service (QoS) supportYes
Quick start guideYes
Rack mountingYes
Rate limitingYes
SFP module slots quantity4
SFP+ module slots quantity4
Spanning tree protocolYes
SSH/SSL supportYes
Static routeYes
Storage relative humidity (H-H)5 - 90%
Storage temperature (T-T)-40 - 70 °C
Store-and-forwardYes
Switch layerL2/L3
Switch typeManaged
Switching capacity128 Gbit/s
System event logYes
Virtual LAN featuresPrivate VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Viteza transferGigabit
VLAN supportYes
Web-based managementYes
Width440 mm
