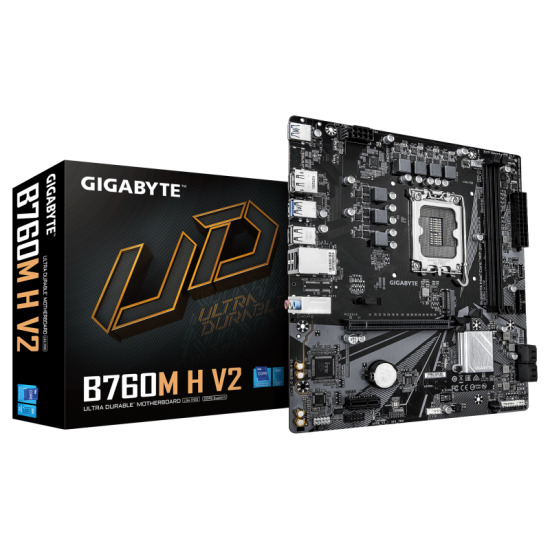

Placa de baza GigaByte 760M H V2 DDR5 LGA1700
- Disponibilitate: In Stoc
- Model: B760M H V2
- Greutate: 0.77kg
- Dimensiuni: 26.50cm x 26.50cm x 5.50cm
465,14 Lei
584,50 Lei
Fără TVA: 384,41 Lei
Garanție: 36 luni
| Caracteristici | |
| 12V power connector | Yes |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| ACPI version | 5.0 |
| ATX Power connector (24-pin) | Yes |
| Audio Chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Batteries included | Yes |
| Battery capacity | 220 mAh |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Bluetooth | Nu |
| Bundled software | Norton® Internet Security (OEM version) |
| Canale audio | 7.1 |
| Chipset audio integrat | Realtek |
| Clear CMOS jumper | Yes |
| Component for | PC |
| Cooling type | Passive |
| Country of origin | China |
| CPU fan connector | Yes |
| Depth | 220 mm |
| Desktop Management Interface (DMI) version | 2.7 |
| DirectX version | 12.0 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| DVI-D ports quantity | 0 |
| ECC сompatibility | ECC & Non-ECC |
| EPS power connector (8-pin) | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Format | Micro-ATX (mATX) |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Gaming | Nu |
| HDCP | Yes |
| HDCP version | 2.3 |
| HDMI | Da |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Height | 3.5 mm |
| LAN controller | Realtek RTL8111H |
| Line-in | Yes |
| Lithium weight per battery | 0.07 g |
| Maximum internal memory | 128 GB |
| Maximum internal memory per slot | 64 GB |
| Maximum resolution | 4096 x 2304 pixels |
| MB-Format | micro-ATX |
| MB-Socket | 1700 |
| Memorie maxima | 128 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Microphone in | Yes |
| Model Chipset | B760 |
| Motherboard chipset | Intel B760 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Numar sloturi memorie | 2 |
| Number of battery cells | 1 |
| Number of chassis fan connectors | 2 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of HDDs supported | 4 |
| Number of M.2 (M) slots | 1 |
| Number of memory slots | 2 |
| Number of RGB LED pin headers | 2 |
| Number of SATA III connectors | 4 |
| Number of storage drives supported | 5 |
| Onboard-CPU | No |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 850 g |
| Package width | 265 mm |
| Parallel processing technology support | Not supported |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| PCI | 0 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI-Ex1 | 1 |
| PCI-Ex16 | 1 |
| Power source type | ATX |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Product colour | Dark brown |
| Products per shipping (inner) case | 1 pc(s) |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| RAM-Slots | 2 |
| RGB LED pin header | Yes |
| RJ-45 LAN | 1 |
| Screws included | Yes |
| Serial port headers | 1 |
| Serial-or-Paralel | No/No |
| Sloturi M.2 | 1 |
| Soclu Procesor | Socket 1700 |
| Supported memory clock speed (max) | 8000 MHz |
| Supported memory clock speeds | 8000,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,4800,4000 MHz |
| Supported memory types | DDR5-SDRAM |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD & SSD |
| System Management BIOS (SMBIOS) version | 2.7 |
| Thunderbolt | Nu |
| Tip memorie | DDR5 |
| Tip slot interfata grafica | PCIe 4.0 x16 |
| TPM connector | Yes |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB Type C | N/A |
| USB3 | 4-8 |
| VGA (D-Sub) ports quantity | 0 |
| Video-Connection | HDMI/DP |
| Warranty period | 3 year(s) |
| Weight | 770 g |
| Wi-Fi | No |
| Width | 244 mm |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Wireless | Nu |
