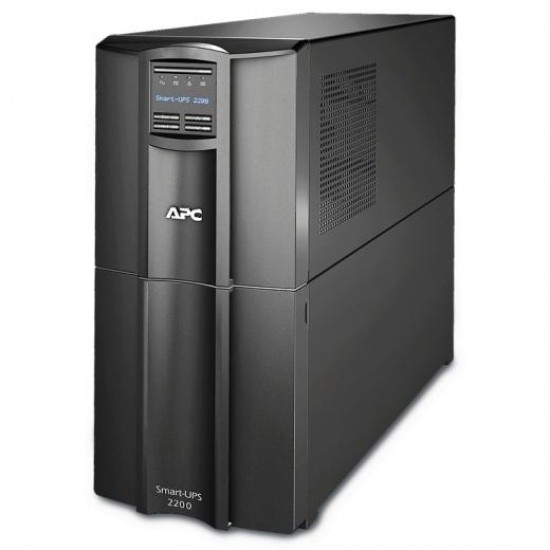

APC Smart-UPS 2200VA, Tower, LCD 230V with SmartConnect Port
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: USB cable
Output power capacity
1.98kWatts / 2.2kVA
Output Connections
(1) IEC 320 C19 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion
Less than 5 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220, 240
Topology
Line interactive
Waveform type
Sine wave
Transfer Time
6 ms typical : 10 ms maximum
UPS APC Smart-UPS SMT line-interactive / sinusoidala 2200VA / 1980W 8conectori C13 1 conectori C19, baterie RBC55, optional extinder egarantie cu 1/3 ani (WBEXTWAR1YR-SP-03/WBEXTWAR3YR-SP-03),3 ani garantie echipament si 2 ani garantie baterie
- Disponibilitate: In Stoc
- Model: SMT2200IC
- Greutate: 58.00kg
- Dimensiuni: 56.00cm x 72.00cm x 34.00cm
7.009,32 Lei
8.416,78 Lei
Fără TVA: 5.792,83 Lei
Garanție: 36 luni
| Caracteristici | |
| AC outlets quantity | 9 AC outlet(s) |
| Altii | 2x IEC Jumpers |
| Atentionari Baterie slaba | Da |
| Atentionari Mod baterie | Da |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Battery replacement |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
| Baterie | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Baterie inlocuitoare | RBC55 |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Battery technology | Sealed Lead Acid (VRLA) |
| Cables included | RS-232, USB cable |
| Capacitate putere UPS | 1980W |
| Capacitate Rack | None |
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE |
| Depth | 544 mm |
| Dimensiuni | 435 x 197 x 544 mm |
| Display | Da |
| Display type | LCD |
| Ecran LCD: | Da |
| Emergency Power Off (EPO) | Yes |
| Form Factor: | Tower |
| Greutate | 48.80 Kg |
| Harmonized System (HS) code | 85078000 |
| Height | 43.5 mm |
| IEC C13 | 8 |
| IEC C19 | 1 |
| Incarcare | 1,98 kW |
| Input frequency | 50 - 60 Hz |
| Input operation voltage (max) | 302 V |
| Input operation voltage (min) | 151 V |
| Interfata | USB SmartSlot |
| LED indicators | Yes |
| Noise level | 45 dB |
| Non-operating altitude | 0 - 15000 m |
| Numar baterii | 1 |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 1980 W |
| Output power capacity | 2.2 kVA |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Package depth | 7.62 mm |
| Package height | 69.9 mm |
| Package weight | 61.9 kg |
| Package width | 381 mm |
| Port USB | Da |
| Power protection features | Over voltage, Overload |
| Products per pallet | 9 pc(s) |
| Putere | 2200 VA |
| Rackable | No |
| Response time | 6 ms |
| Serial interface | Yes |
| Serial ports quantity | 1 |
| SmartSlot | Yes |
| Software CD | Yes |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 45 °C |
| Surge energy rating | 365 J |
| Sustainability certificates | Green Premium |
| Tensiune de alimentare | 230V |
| Timp incarcare | 3 ore |
| Timp mediu de functionare | 151.7 @200W 8.7 min @1980W |
| Tip | Line-interactive |
| Tip UPS: | Line Interactive |
| Total carbon footprint (kg of CO2e) | 3715.93 |
| Typical backup time at full load | 8.7 min |
| Typical backup time at half load | 25 min |
| UPS topology | Line-Interactive |
| UPS-Management | No |
| USB 2.0 ports quantity | 1 |
| USB Port | Yes |
| USB port type | USB Type-A |
| Waveform | Sine |
| Weight | 48.8 kg |
| Width | 197 mm |
